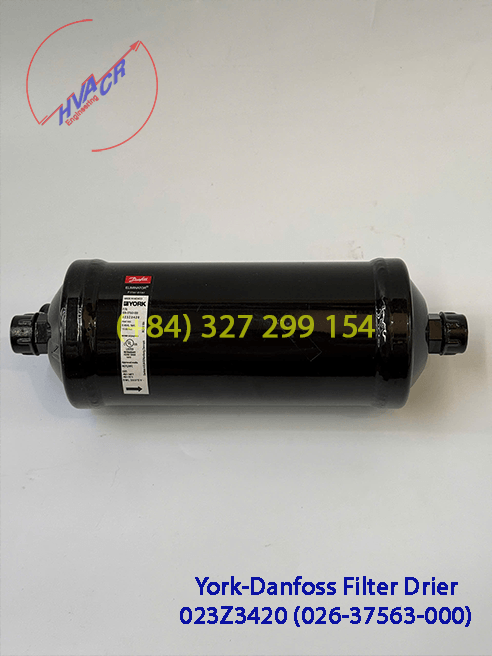

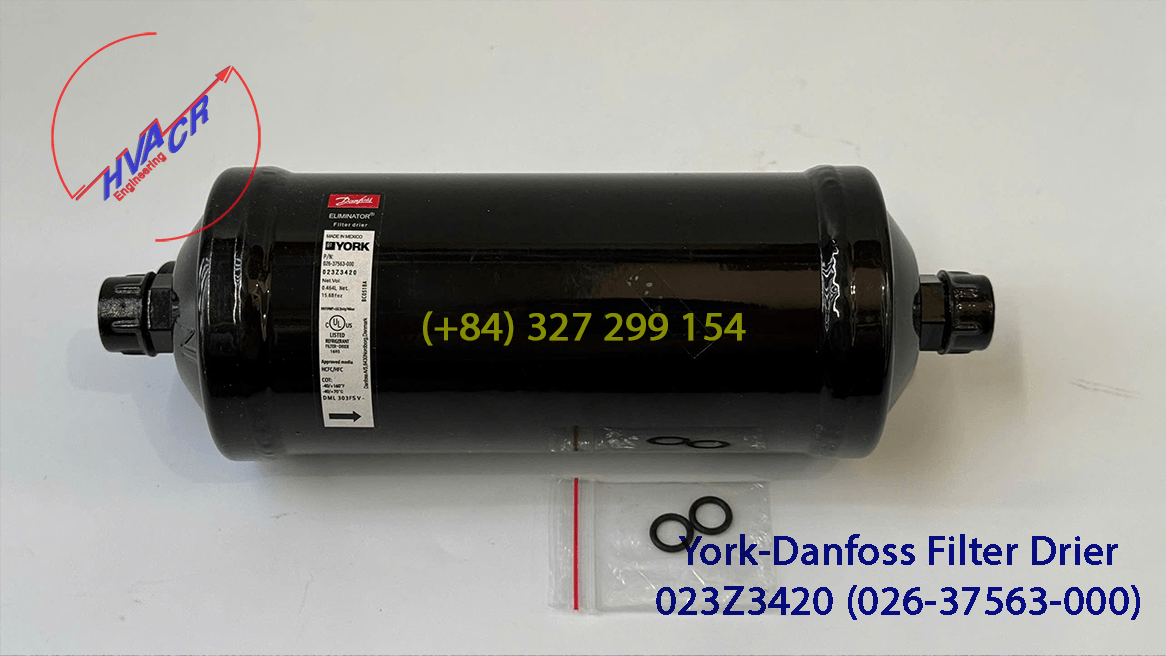

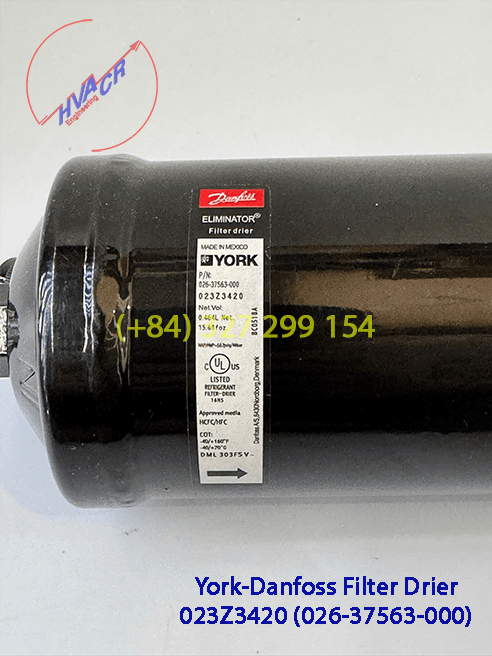

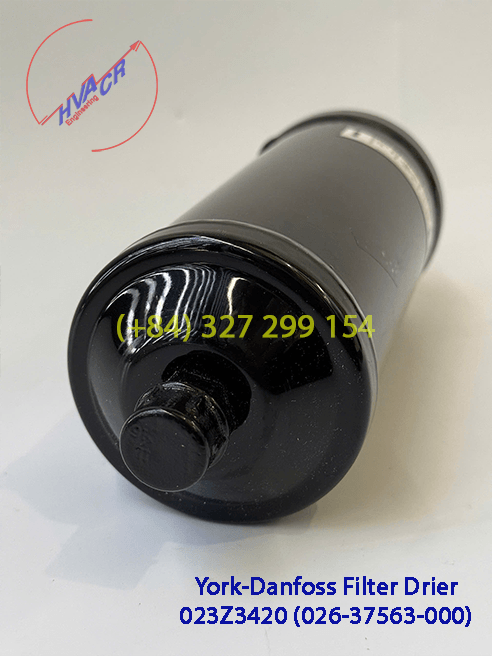

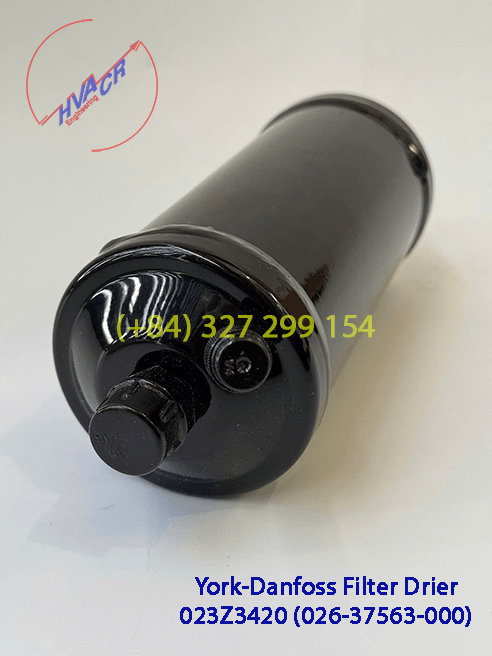

Eliminator liquid line filter driers protect refrigeration and air-conditioning systems from moisture, acids, and solid particles. With these contaminants eliminated, systems are safer from harmful chemical reactions and from abrasive impurities.

There are two types of Eliminator cores. Type DML driers have a core composition of 100% molecular sieves, while type DCL contain 80% molecular sieves with 20% activated alumina. All Eliminator driers have a solid core with binding material held to an absolute minimum. Core selection is primarily based on the refrigerant oil used in the system.

• Eliminator type DML, with a solid core of 100% molecular sieves, are optimized for use with HFC refrigerants and polyolester (POE) or polyalkyl glycol (PAG) oils. Type DML driers are designed for applications requiring high water adsorption, and can be used with any manufacturer’s compressor. Because type DML driers contain no activated alumina, oil additives will not be depleted.
• Eliminator type DCL, with a solid core of 80% molecular sieves and 20% activated alumina, is the drier of choice for systems with HCFC and CFC refrigerants and mineral or alkyl benzene oils. Type DCL driers are particularly suited for systems that operate at high condensing temperatures and require high drying capacity.

Features:

The Core Type DML • 100% 3A molecular sieves core. • High drying capacity minimizing the risk of acid formation (hydrolysis). • Optimized for HFC refrigerants (R 134a, R 404A, R 410A, etc.) with POE and PAG oils. Compatible with R 22. • Will not deplete oil additives.

Type DCL • 80% 3A molecular sieves with 20% activated alumina. • Perfect core blend for systems that operate at high condensing temperatures and require high drying capacity. • Optimized for CFC and HCFC refrigerants (R 22, R 502, etc.) with mineral and alkyl benzene oils. Compatible with HFC's and refrigerant blends.

Allows installation with any orientation provided the arrow is in the flow direction.

Available in 8 sizes from 3 to 75 cubic inches.

The Shell • UL approved for MWP up to 42 bar. • Available with solder (solid copper), flare, or O-ring face seal connections. • Corrosion resistant powder-painted finish. Can be used in all environments including marine applications.

The Filter • 25 µm filter provides high retention with minimal pressure drop. • Thermally stable up to 120°C.
