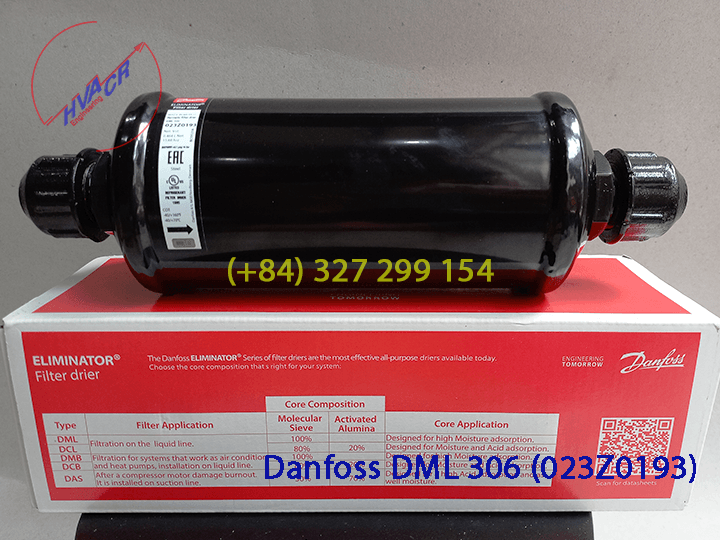

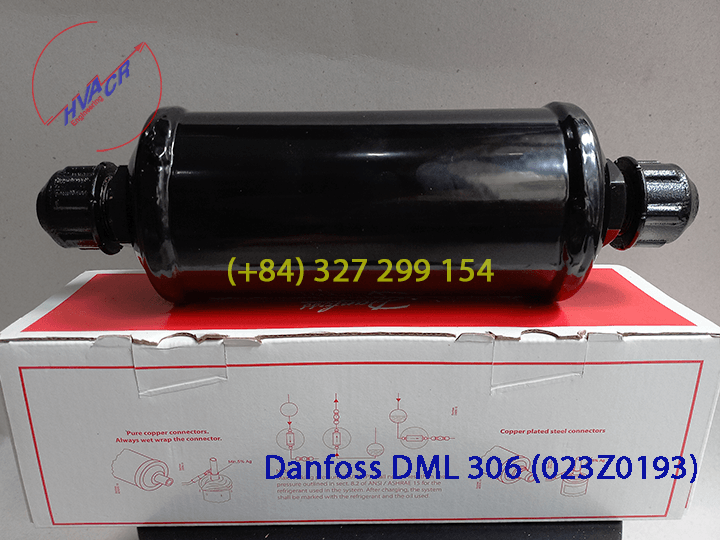

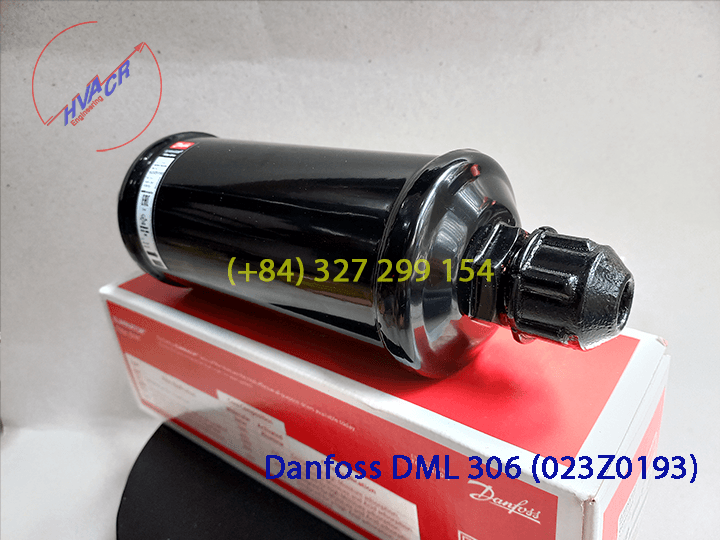

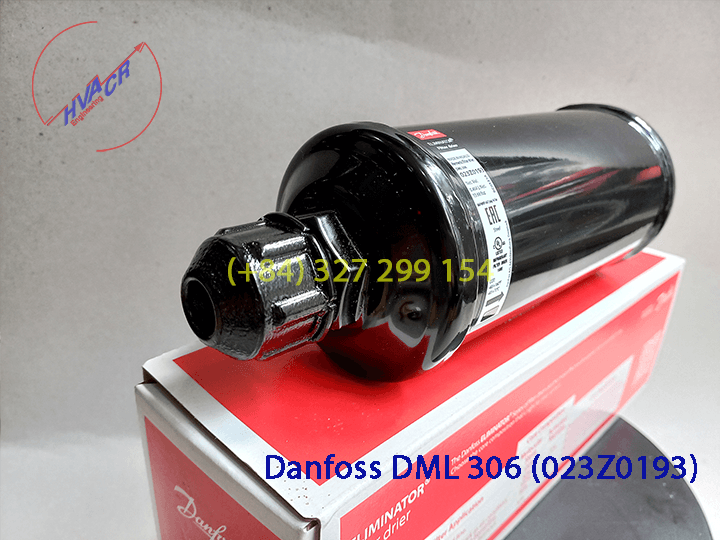

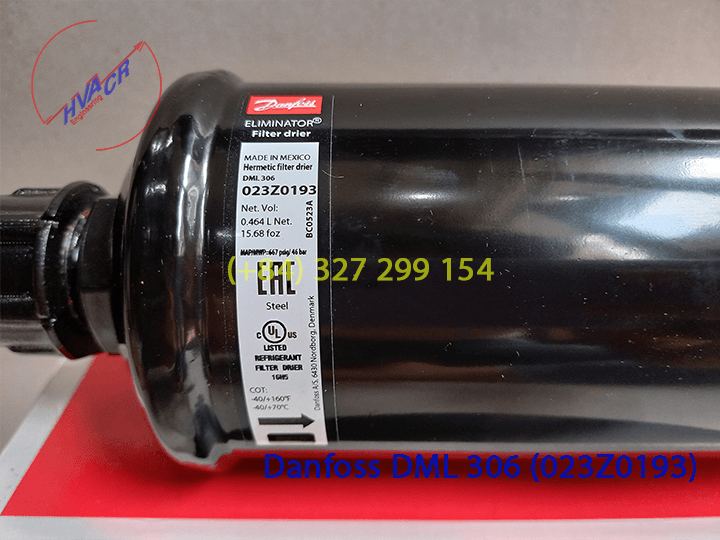

DANFOSS HERMETIC HERMETIC FILTER DRIER DML 306, (023Z0193)

Home Products Filter DANFOSS - ELIMINATOR HERMETIC HERMETIC FILTER DRIER DML 306, 3/4 inch (023Z0193)

DANFOSS - ELIMINATOR HERMETIC HERMETIC FILTER DRIER DML 306, 3/4 inch (023Z0193)

View: 308 View

Product number:

Type:

Order Danfoss - Eliminator Hermetic Filter Drier DML 306, 3/4 inch (19 mm, 023Z0193)

Telephone/ Điện thoại: (+84) 327.299.154
Wechat:
WhatsApp:
Line:
Fanpage Facebook: Kỹ thuật HVACR Việt Nam

Details
Comment

Product Details:

Product Specification:

Brand	ELIMINATOR
Inlet Connection Size	19 mm
Outlet Connection Size	19 mm
Body Material	Steel
Connection Material	Steel
Temperature range[˚C]	-40˚C - 70˚C
Temperature range [˚F]	-40˚F - 160˚F
Weight [Kg]	1.448 Kg
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig
Country of Origin	Made in Mexico
Refrigerants	R1233zd(E); R1234yf; R1234ze(E); R125; R134a; R22/R407C; R23; R32; R404A; R407A; R407F; R407H; R410A; R422B; R422D; R438A; R444B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A;R463A; R507A; R513A; R515B; R516A

Product Video

Dimensions and weights (DML 306)

A: 186 (mm); L: 258 (mm);
D1: 80 (mm); D2: 76 (mm);
Net weight / khối lượng tịnh: 1.448 (Kg)

The Core type DML features a 100% Molecular Sieve core, ensuring high drying capacity and reducing acid formation risk. The shell, PED approved for 46-50 bar, has corrosion-resistant, powder-painted finish, with special marine coatings available. It supports solder and flare connections, and any installation orientation. The filter offers 25 μm retention with minimal pressure drop and is thermally stable up to 120°C. Available in sizes 1.5 – 75 cubic inches.
