Danfoss - Eliminator Hermetic Filter Drier DML 307S, 7/8 inch (023Z0071)

Home Products Filter DANFOSS - ELIMINATOR HERMETIC FILTER DRIER, DML 307S, 7/8 inch (023Z0071)

DANFOSS - ELIMINATOR HERMETIC FILTER DRIER, DML 307S, 7/8 inch (023Z0071)

View: 348 View

Product number:

Type:

Order Danfoss - Eliminator Hermetic Filter Drier DML 307S, 7/8 inch (023Z0071)

Telephone/ Điện thoại: (+84) 327.299.154
Wechat:
WhatsApp:
Line:
Fanpage Facebook: Kỹ thuật HVACR Việt Nam

Details
Comment

Product Details:

Product Specification:

Brand	ELIMINATOR
Inlet Connection Size	7/8 inch (22.22 mm)
Outlet Connection Size	7/8 inch (22.22 mm)
Body Material	Steel
Connection Material	Steel
Temperature range [˚C]	-40˚C - 70˚C
Temperature range [˚F]	-40˚F - 160˚F
Weight [Kg]	1.31 Kg
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig
Country of Origin	Made in Mexico
Refrigerants	R1233zd(E); R1234yf; R1234ze(E); R125; R134a; R22/R407C; R23; R290; R32; R404A; R407A; R407F; R407H; R410A; R422B; R422D; R438A; R444B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R516A; R600

Produc Video

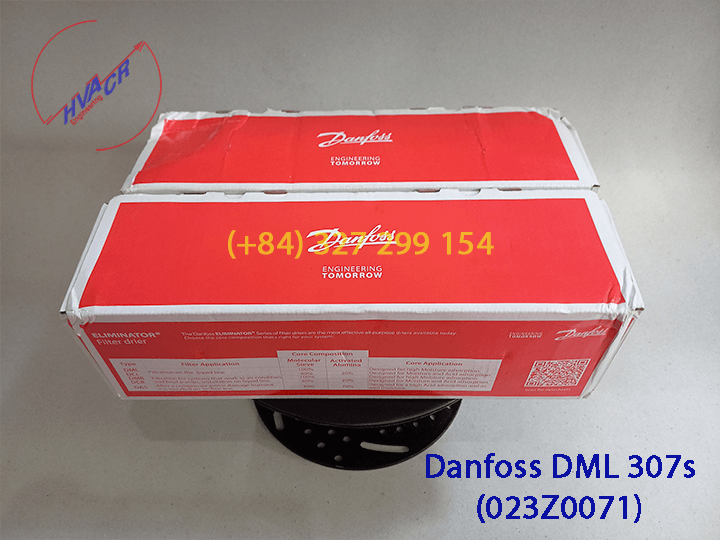

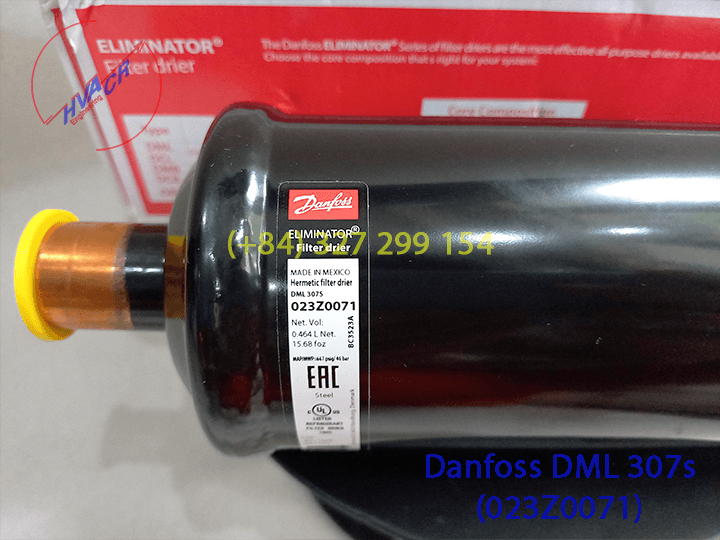

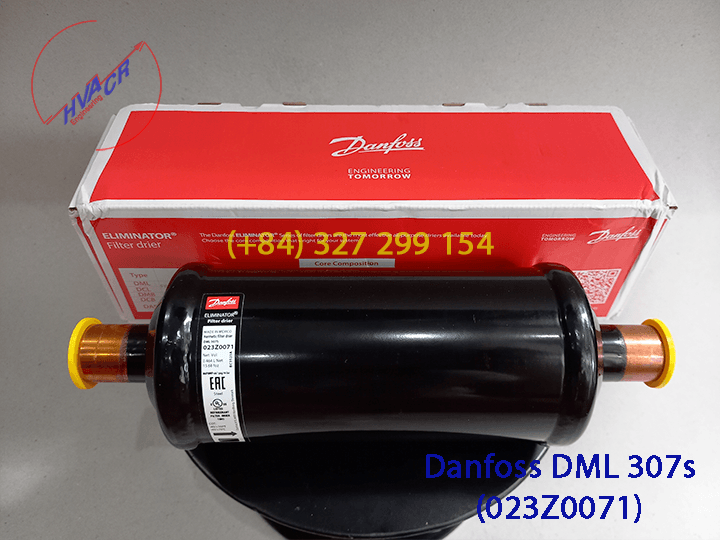

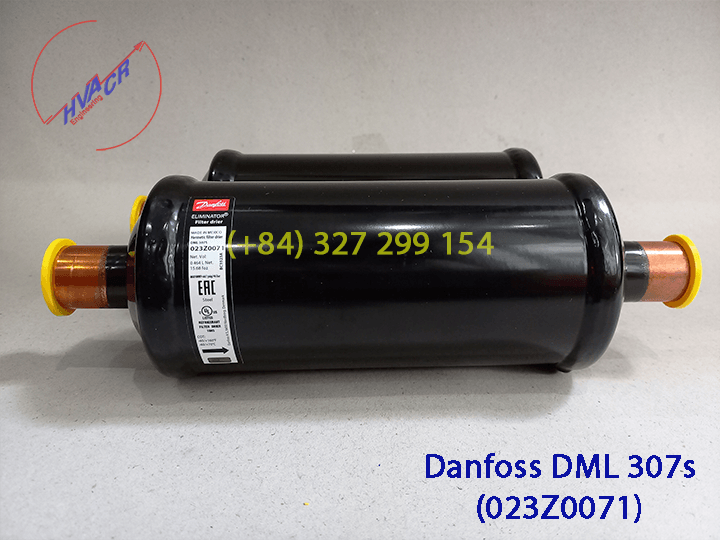

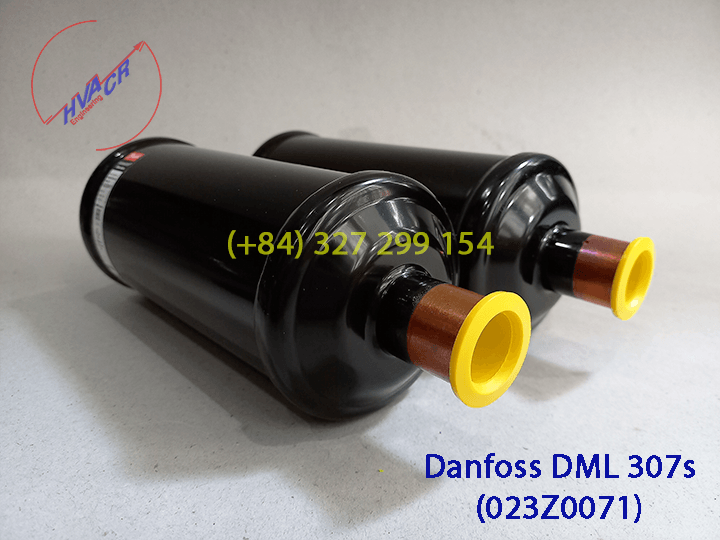

Product Image

Dimensions and weights (DML 307s)

A: 186 (mm); B: 212 (mm); L: 246 (mm);
D1: 80 (mm); D2: 76 (mm);
Net weight: 1.32 (Kg)

The Core type DML features a 100% Molecular Sieve core, ensuring high drying capacity and reducing acid formation risk. The shell, PED approved for 46-50 bar, has corrosion-resistant, powder-painted finish, with special marine coatings available. It supports solder and flare connections, and any installation orientation. The filter offers 25 μm retention with minimal pressure drop and is thermally stable up to 120°C. Available in sizes 1.5 – 75 cubic inches.
