DANFOSS - ELIMINATOR HERMETIC FILTER DRIER, DML 305S, 16mm (023Z0069)

View: 137 View

Product number:

Type:

Order Danfoss - Eliminator Hermetic Filter Drier, DML 305S, 16mm (023Z0069)

Telephone/ Điện thoại: (+84) 327.299.154
Wechat:
WhatsApp:
Line:
Fanpage Facebook: Kỹ thuật HVACR Việt Nam

Details
Comment

Product Details:

Product Specification:

Brand	DANFOSS - ELIMINATOR
Inlet Connection Size	5/8 inch (15.88mm)
Outlet Connection Size	5/8 inch (15.88mm)
Body Material	Steel
Connection Material	Copper
Temperature range	-40˚C to 70˚C (-40˚F to 160˚F)
Max. Working Pressure	46 bar (667 psig)
Country of Origin	Made in Mexico
Refrigerants	R1233zd(E); R1234yf; R1234ze(E); R125; R134a; R22/R407C; R23; R290; R32; R404A; R407A; R407F; R407H; R410A; R422B; R422D; R438A; R444B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R516A; R600

Product Video

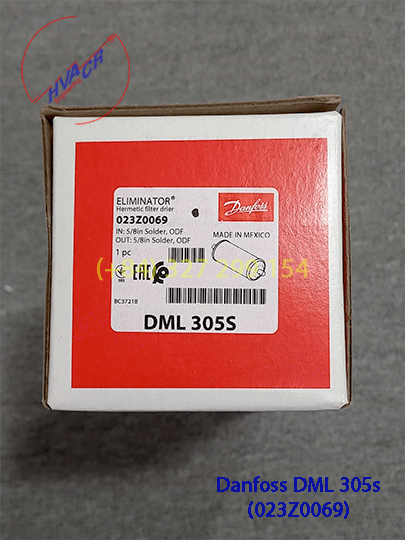

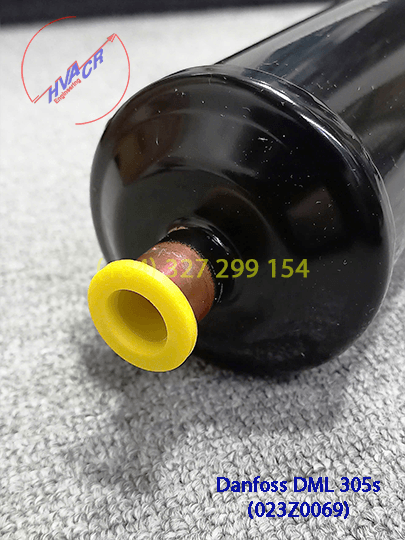

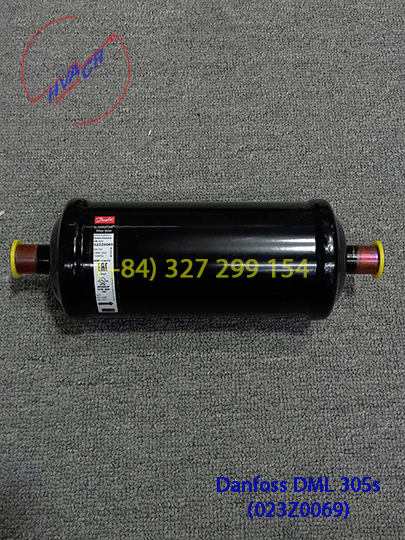

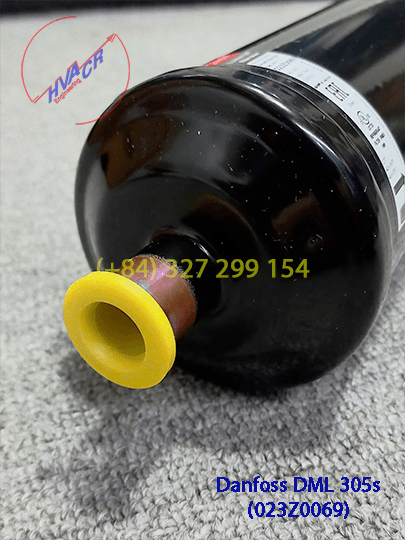

Product Image

The Core type DML features a 100% Molecular Sieve core, ensuring high drying capacity and reducing acid formation risk. The shell, PED approved for 46-50 bar, has corrosion-resistant, powder-painted finish, with special marine coatings available. It supports solder and flare connections, and any installation orientation. The filter offers 25 μm retention with minimal pressure drop and is thermally stable up to 120°C. Available in sizes 1.5 – 75 cubic inches.
