DANFOSS - ELIMINATOR HERMETIC FILTER DRIER, DML 305, 16mm (023Z0051)
View: 347 View
Product number:
Type: Filter Drier
Contact us


Order Danfoss - Eliminator Hermetic Filter Drier DML 305, 16mm (023Z0051)

Telephone/ Điện thoại: (+84) 327.299.154
Wechat:
WhatsApp:
Line:
Fanpage Facebook: Kỹ thuật HVACR Việt Nam

  • Details
  • Comment

Product Details:

Product Specification:

Brand ELIMINATOR
Inlet Connection Size 16mm
Outlet Connection Size 16mm
Body Material  Steel
Connection Material Steel
Temperature range [˚C] -40˚C  -  70˚C
Temperature range[˚F] -40˚F  -  160˚F
Max. Working Pressure [bar]​ 46 bar
Max. Working Pressure [psig] 667 psig
Country of Origin  Made in Mexico
Refrigerants R1233zd(E); R1234yf; R1234ze(E); R125
R134a; R22/R407C; R23; R32; R404A; R407A; R407F; R407H; R410A; R422B; R422D; R438A; R444B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R516A


Product Video

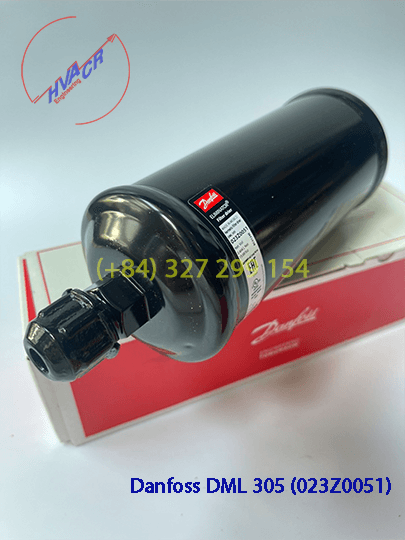

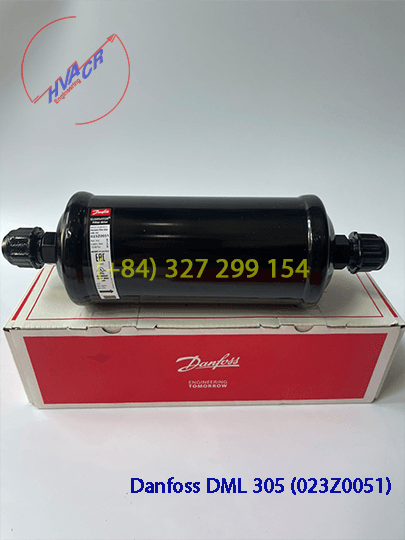

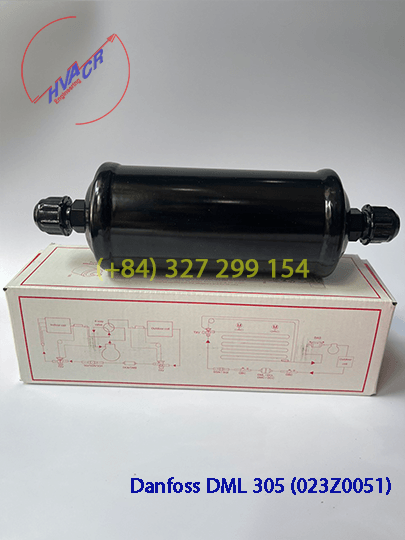

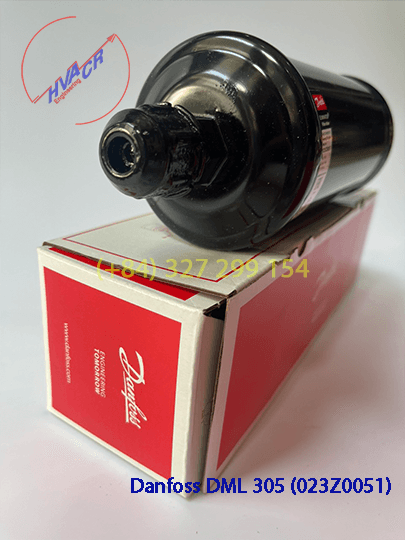

Product Image
IMG1    IMG2
IMG3    IMG4

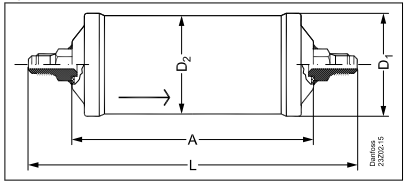

Dimensions and weights (DML 305):



A: 186 (mm);  L: 260 (mm);
D1: 80 (mm);   D2: 76 (mm);
Net weight / khối lượng tịnh: 1.354 (Kg)


The Core type DML features a 100% Molecular Sieve core, ensuring high drying capacity and reducing acid formation risk. The shell, PED approved for 46-50 bar, has corrosion-resistant, powder-painted finish, with special marine coatings available. It supports solder and flare connections, and any installation orientation. The filter offers 25 μm retention with minimal pressure drop and is thermally stable up to 120°C. Available in sizes 1.5 – 75 cubic inches.


Infomation to order the product/Thông tin liên hệ mua sản phẩm:
HVACR VIET NAM ENGINEERING CO.,LTD/ CÔNG TY TNHH KỸ THUẬT HVACR VIỆT NAM
Address: 331/70/45A Phan Huy Ich Street, Ward 14, Go Vap District, HCM City, Vietnam
Telephone/ Điện thoại: (+84) 327.299.154
