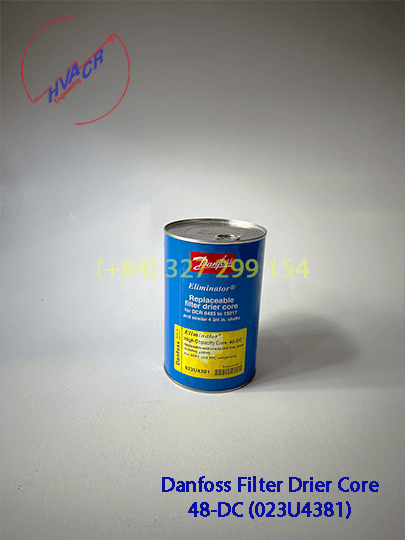

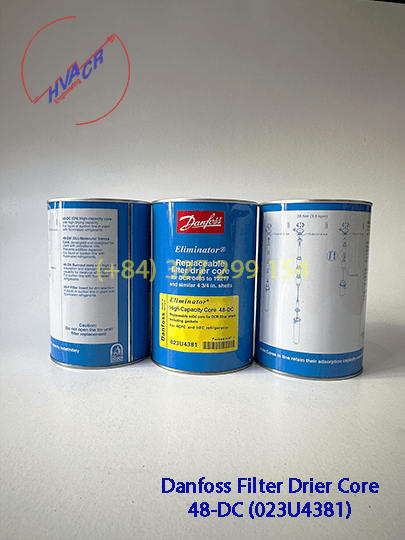

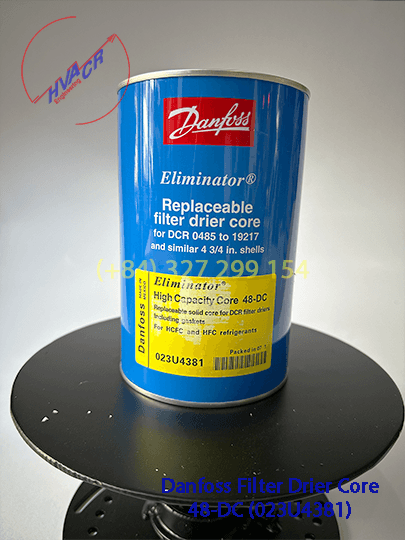

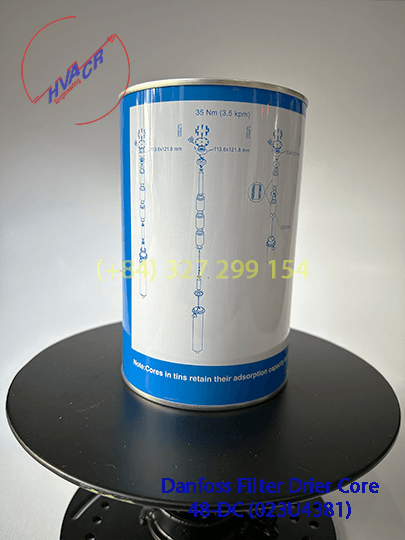

The Danfoss Mild Steel 48 DC Drier Core is a durable component designed to effectively remove moisture and contaminants from refrigeration systems. Constructed from high-quality mild steel, it ensures long-lasting performance and reliability, contributing to efficient operation and extended lifespan of refrigeration. equipment.

DCR / DCRE housing:
• PED approved for PS up to 46 bar for the DCR and up to 50 bar for DCRE
• DCR / DCRE housing (including core holder) are made entirely of steel and are thus compatible with all refrigerants
• DCR / DCRE housings have undergone phosphate pre-treatment and have a corrosion-resistant powder-paint finish
• DCR / DCRE housings are helium leak tested
• DCR / DCRE housings are allow to be used with CO2

Top covers for DCR / DCRE housings:
• Zinc-chromated steel top covers with or without external access connection

Inserts for DCR housings - strainer 48 - F strainer - compatible with all refrigerants:
• Retains dirt particles larger than 15 μm
• For use direct in DCR housings
• Utilised in the suction or liquid line

Inserts for DCR housings - solid cores
48 - DM - 100% molecular sieve solid core suitable for HFC refrigerants:
• Provides high moisture adsorption at low and high condensing temperatures
• Effective protection against impurities

48 - DC - 80% molecular sieve and 20% activated alumina solid core suitable for HCFC refrigerants and compatible
with HFC refrigerants:
• Adsorbs moisture and acid in the system throughout the entire temperature range

48 - DA - 30% molecular sieve and 70% activated alumina solid core suitable after compressor burnout and
compatible with HCFC / HFC refrigerants

Inserts for DCRE housings - solid cores:
• 48 - DM
• 48 - DC

All solid cores have an optimised uniform grain size ensuring effective dirt removal and low pressure drop. The
robust solid cores withstand pressure surge and vibration. Inserts are compatible with the wide range of
refrigerants, including CO2
