Product Details:
| Brand | W.I.P |
| Product Model | W-2F |
| Code | 4000 |
| Supply voltage | 24VAC and 220VAC |
| System frequency | 50/60 Hz |
| Power consumption | 1VA |
| Accuracy | ± 1% max |
| Time rage | 3 min |
| Adjustable type | Fix |
| Output type | Solid State |
| Load impedance | 340-15.000 Ω at coil 220 VAC 50/60 Hz |
| Load impedance | 9-12 Ω at coil 24 VAC 50/60 Hz |
| Maximum load current | 1.5A steady state, 20A inrush at 77°C |
| Operating temperature | -10°C to + 55°C |
| Storage temperature | -10°C to + 70°C |
| Ambient humidity | Max 85%PH |
| Mounting | Surface mounted with one |
| Housing | ABC Plastic |
| Wire fixing terminal | 0.25'' (6.35 mm) male |
| Indicator | LED 3 mm |
| Dimension (mm) | 52 x 52 x 20 |
| Weight | 50g |
Product Description:
Product Video
Product Image
The W-2F timer similarly serves as an ideal option when a time delay is required to energize a circuit and to prevent rapid restarting after sudden power loss. It also comes with fixed, external, or onboard adjustable time delay options. When power is applied to the W-2F, the fixed delay period starts. The circuit connected to the W-2F remains energized until the input voltage is interrupted or cut off. Upon power loss to the W-2F, the circuit is promptly de-energized, maintaining controlled operation as needed.

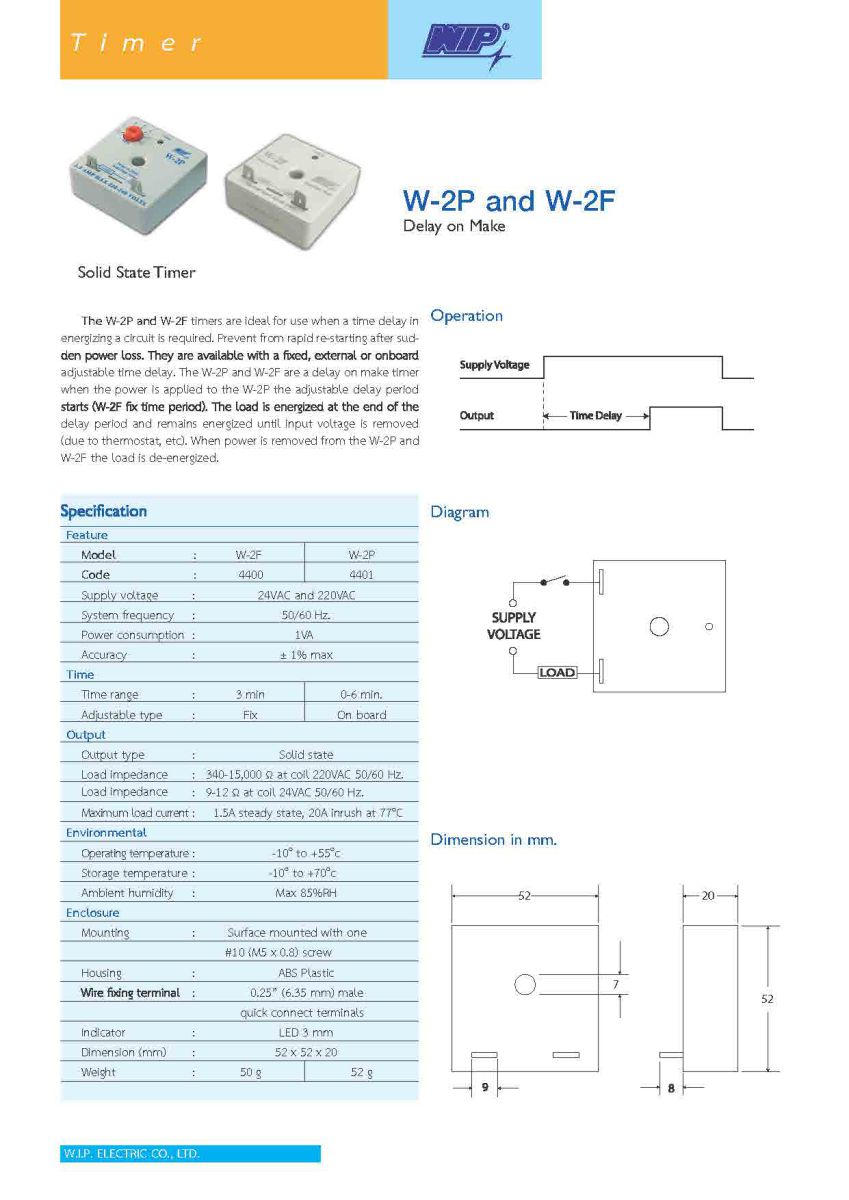

The W-2P and W-2F timers are ideal for use when a time delay in energizing a circuit is required. Prevent from rapid re-starting after suden power loss. They are available with a fixed, external or onboard adjustable time delay. The W-2P and W-2F are a delay on make timer when the power is applied to the W-2P the adjustable delay period starts (W-2F fix time period). The load is enegized at the end of the delay period and remains energized until input voltage is removed (due to thermostat, etc). When power is removed from the W-2P and W-2F the load is de-energized.
