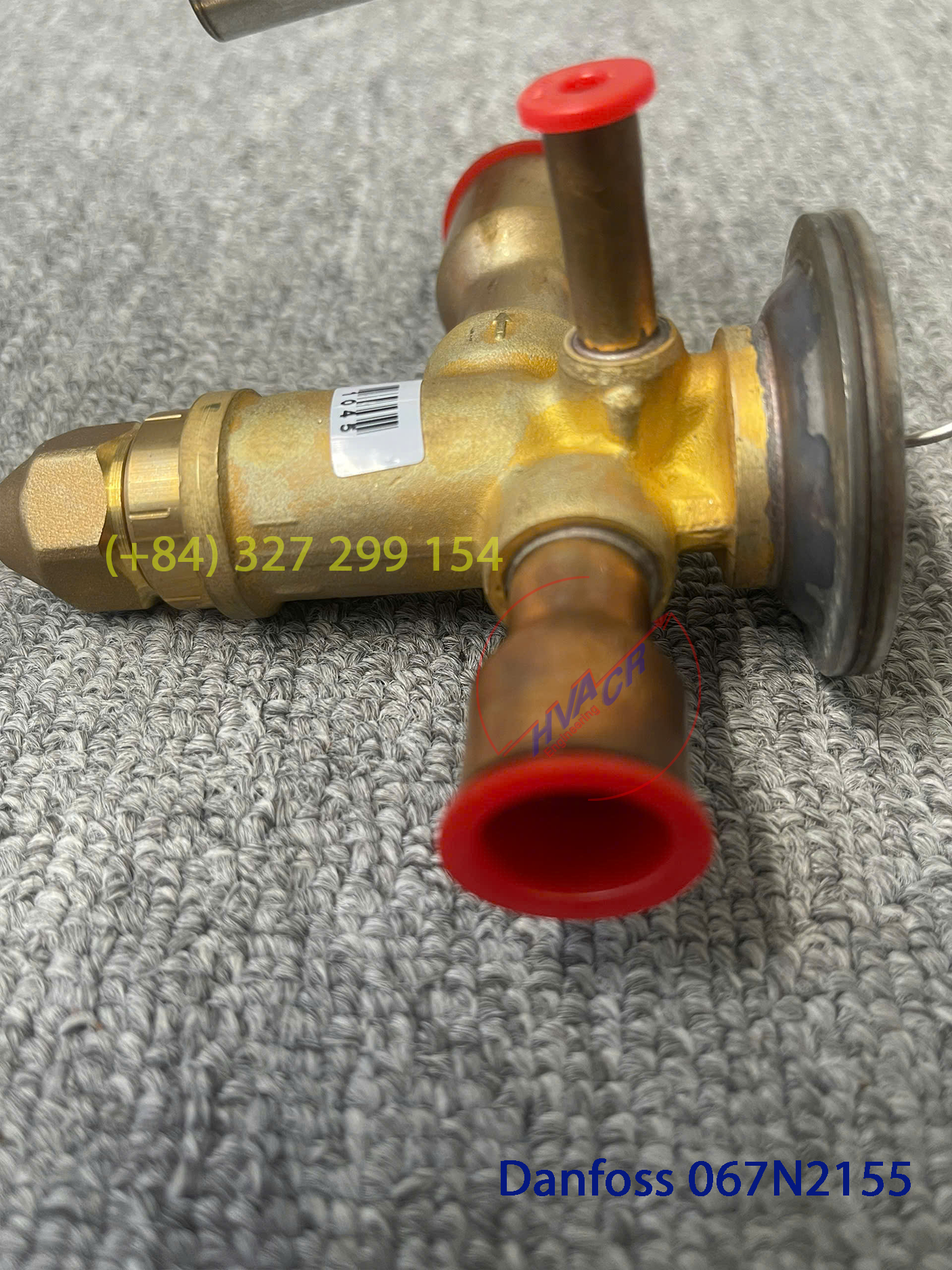

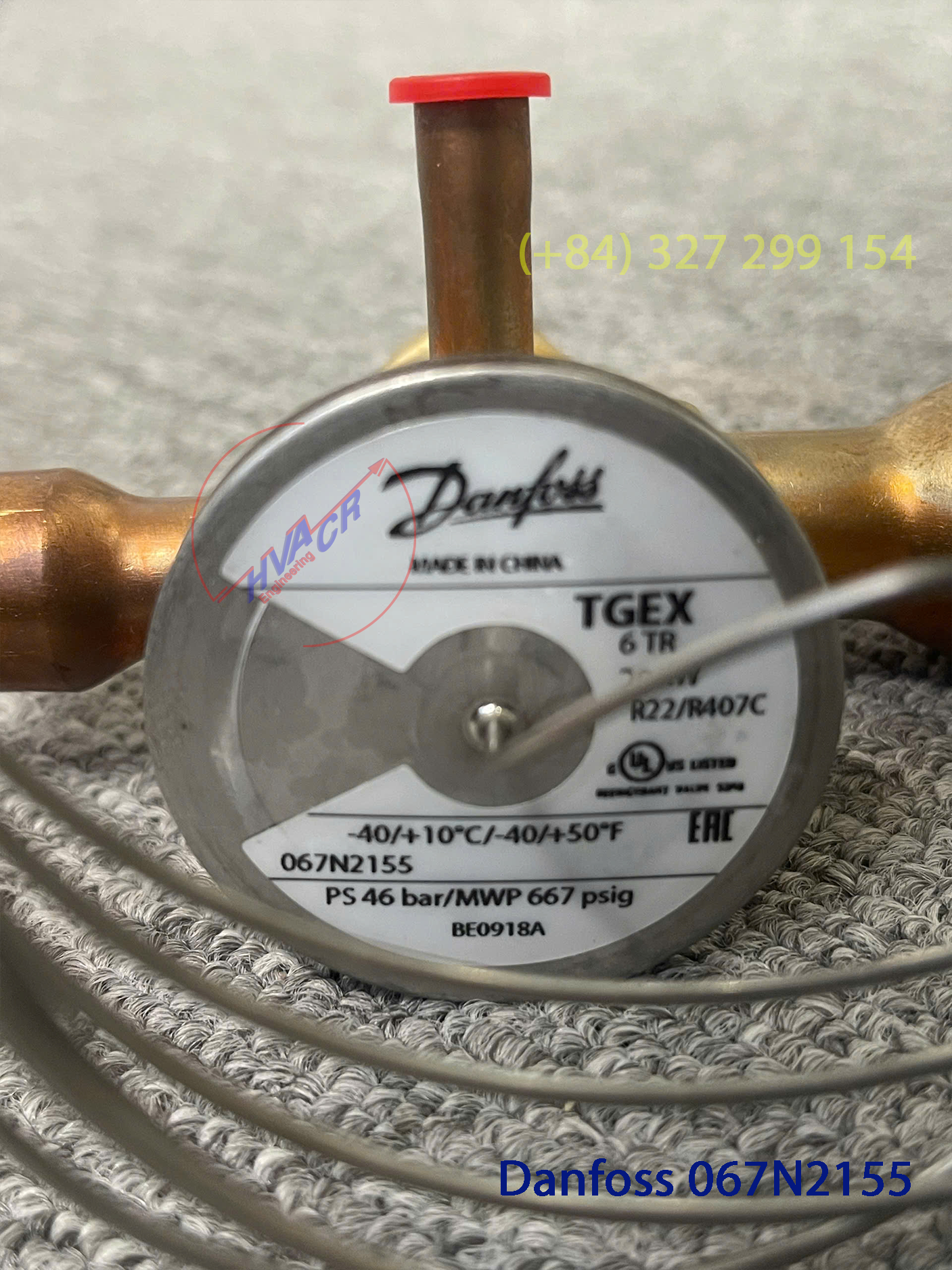

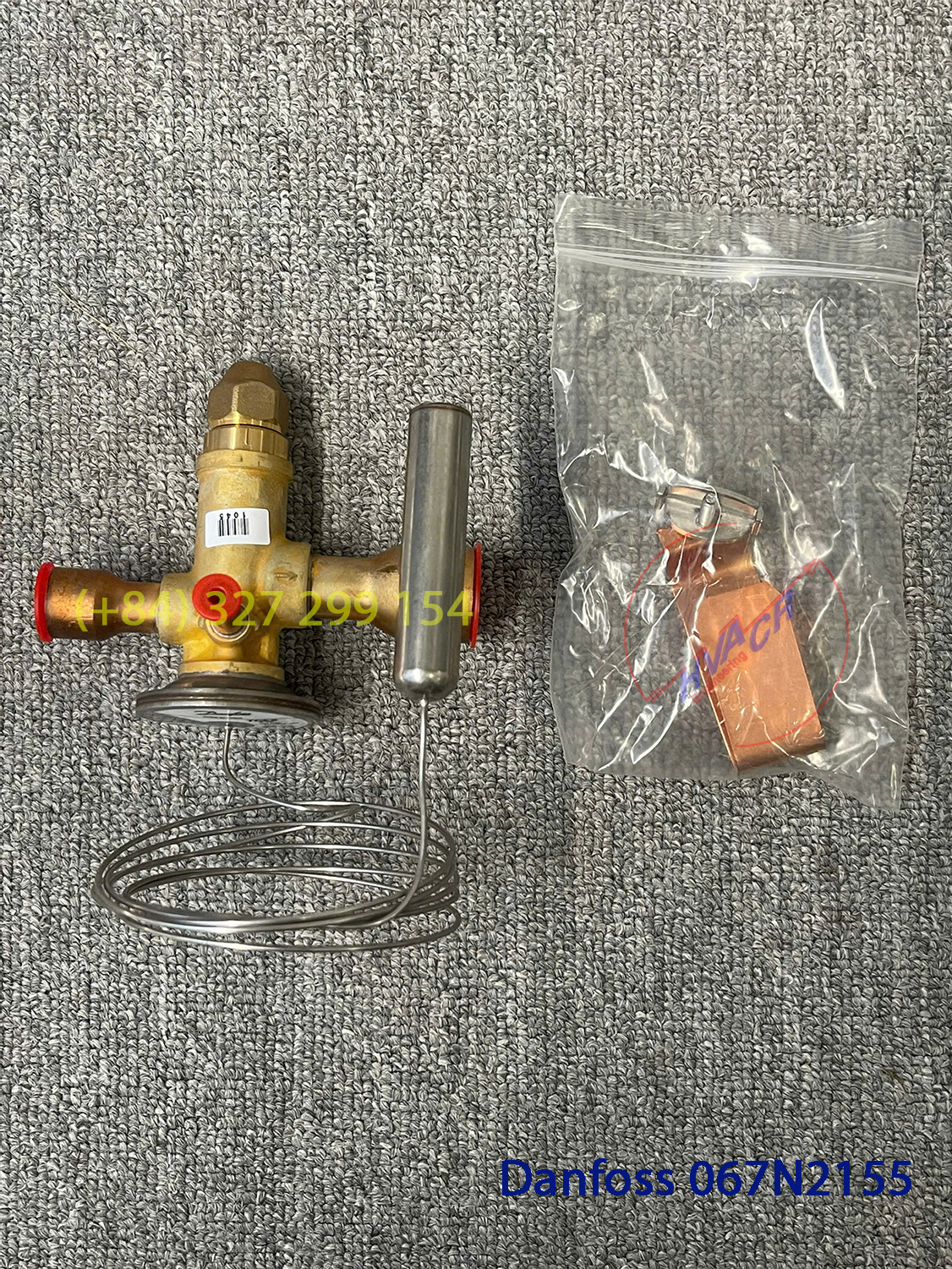

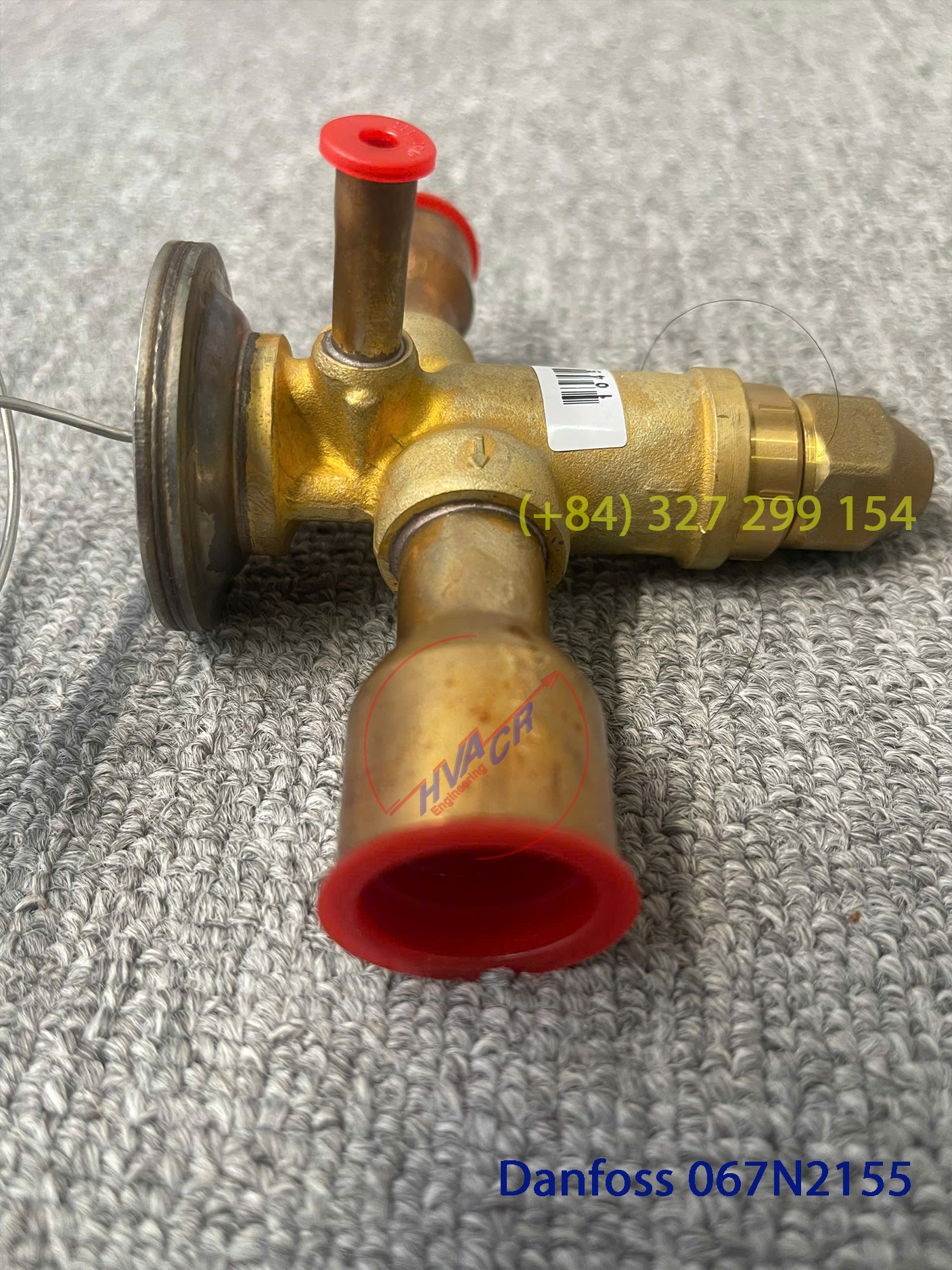

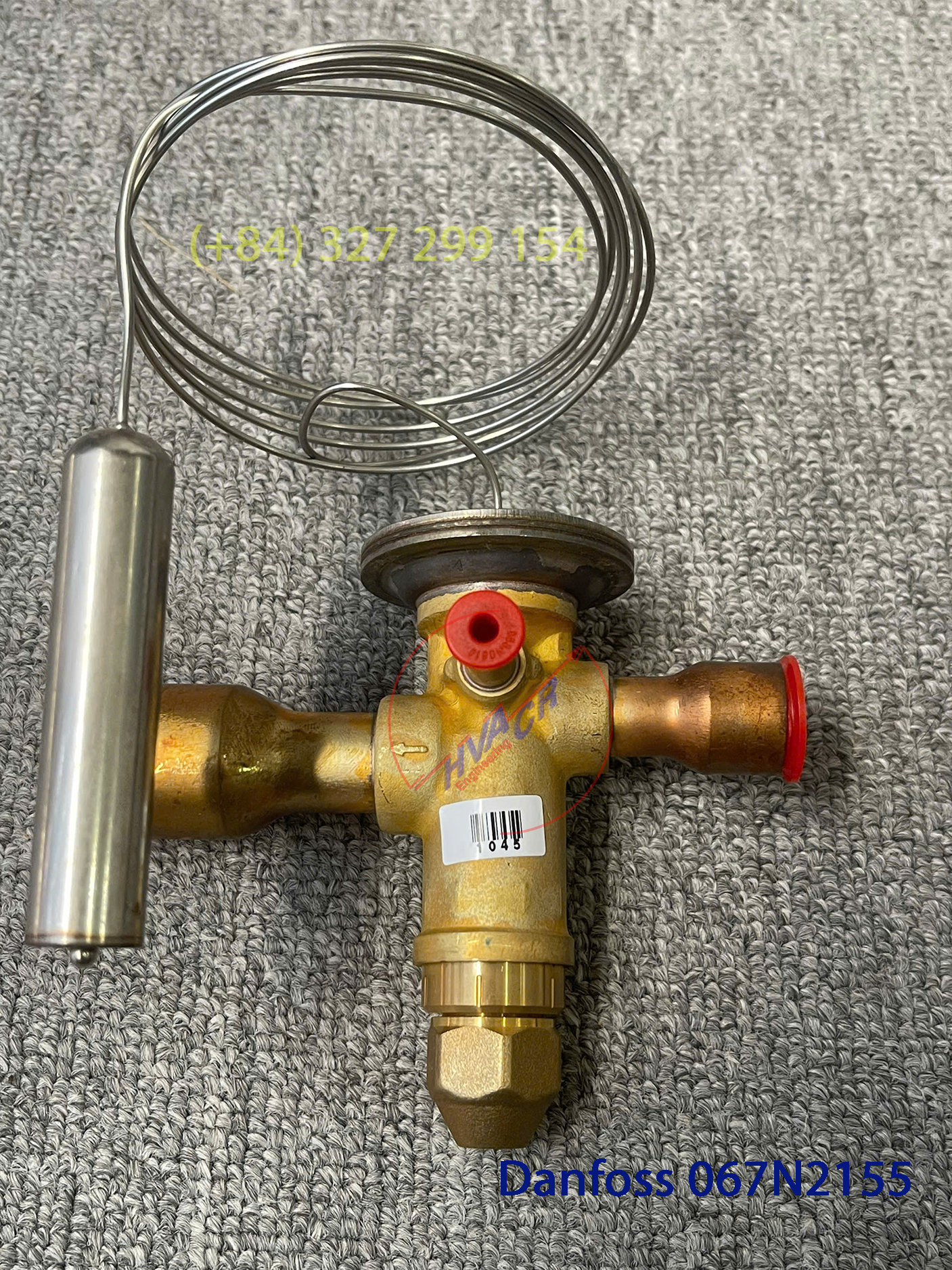

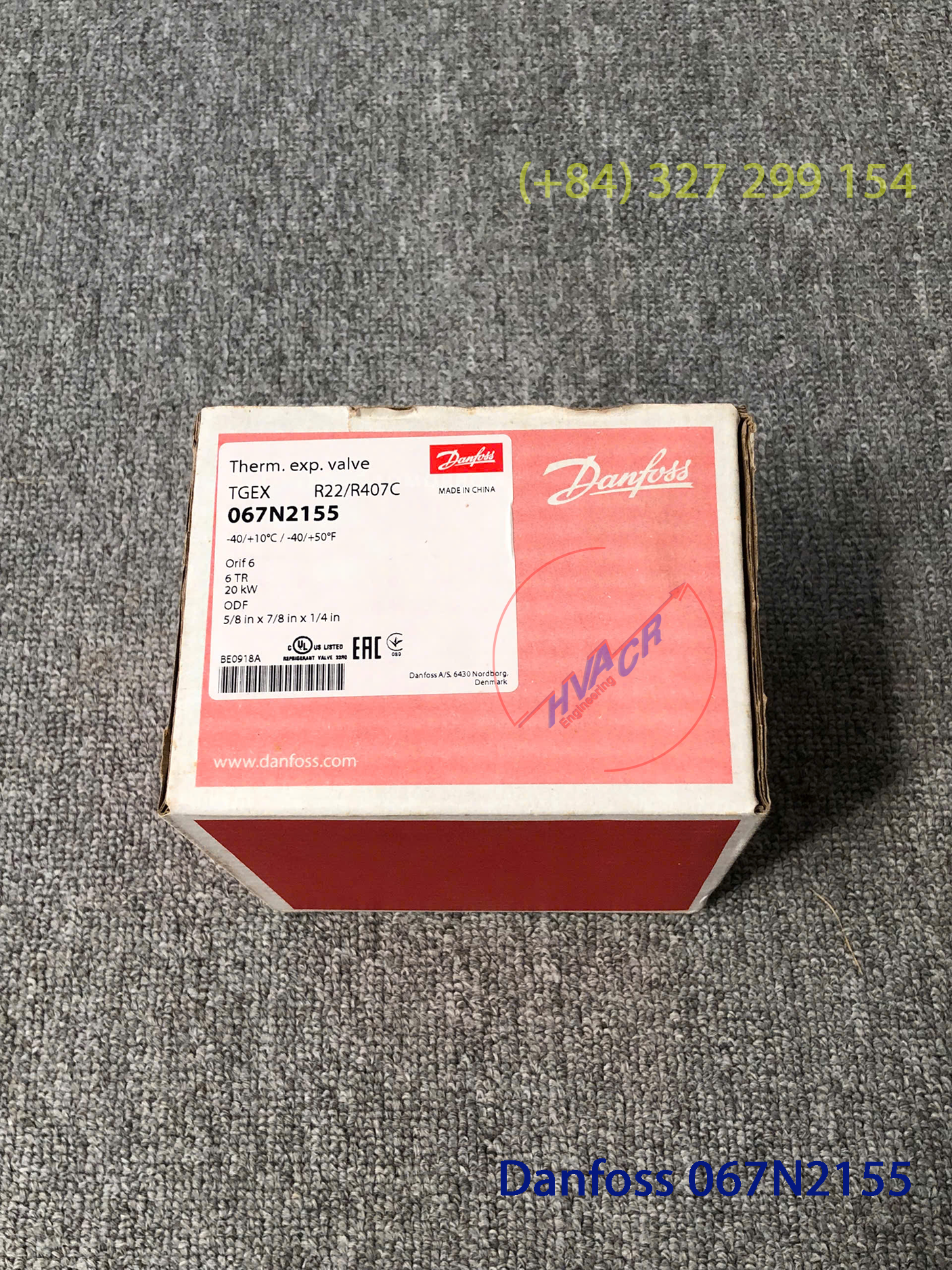

THERMOSTATIC EXPANSION VALVE - DANFOSS 067N2155

View: 90 View

Product number:

Type:

Order Thermostatic expansion valve Danfoss 067N2155 / Đặt hàng van tiết lưu Danfoss 067N2155

Telephone/ Điện thoại: (+84) 327.299.154
Wechat:
WhatsApp:
Line:
Fanpage Facebook: Kỹ thuật HVACR Việt Nam

Details
Comment

Product Details/ Chi tiết sản phẩm:

Product Specification/ Đặc điểm kỹ thuật sản phẩm:

Brand	Danfoss
Type	TGE
Inlet Size	5/8 inch (15.88 mm)
Outlet Size	7/8 inch (22.22 mm)
Body Material	Brass
Capillary tube length	59 inch (1500 mm)
Temperature range [˚C]	-40˚C - 10˚C
Temperature range [˚F]	-40˚F - 50˚F
Orifice capacities [kW]	20 kW
Orifice capacities [TR]	6 TR
Orifice Size	6
Weight [Kg]	0.38 Kg
Max. Working Pressure [bar]	49 bar
Max. Working Pressure [psig]	711 psig
Country of Origin	Made in China
Refrigerants	R22; R407C

Product Description/ Miêu tả sản phẩm:

Product Video / Video sản phẩm

Introducing TGE, a specialized series of thermostatic expansion valves meticulously engineered for a spectrum of refrigerants. From R410A to R290, TGE ensures optimal performance across various capacities, spanning from 3.5 to 52 TR / 12 to 182 kW for R410A. Its balance port design, bi-flow capability, and low hysteresis guarantee efficient expansion in both directions, while laser-welded stainless steel components ensure durability. With mechanical connection options and optional features like MOP (Max. Operating Pressure), TGE delivers precision and reliability for diverse heat pump applications. UL certification underscores its quality and safety standards.
