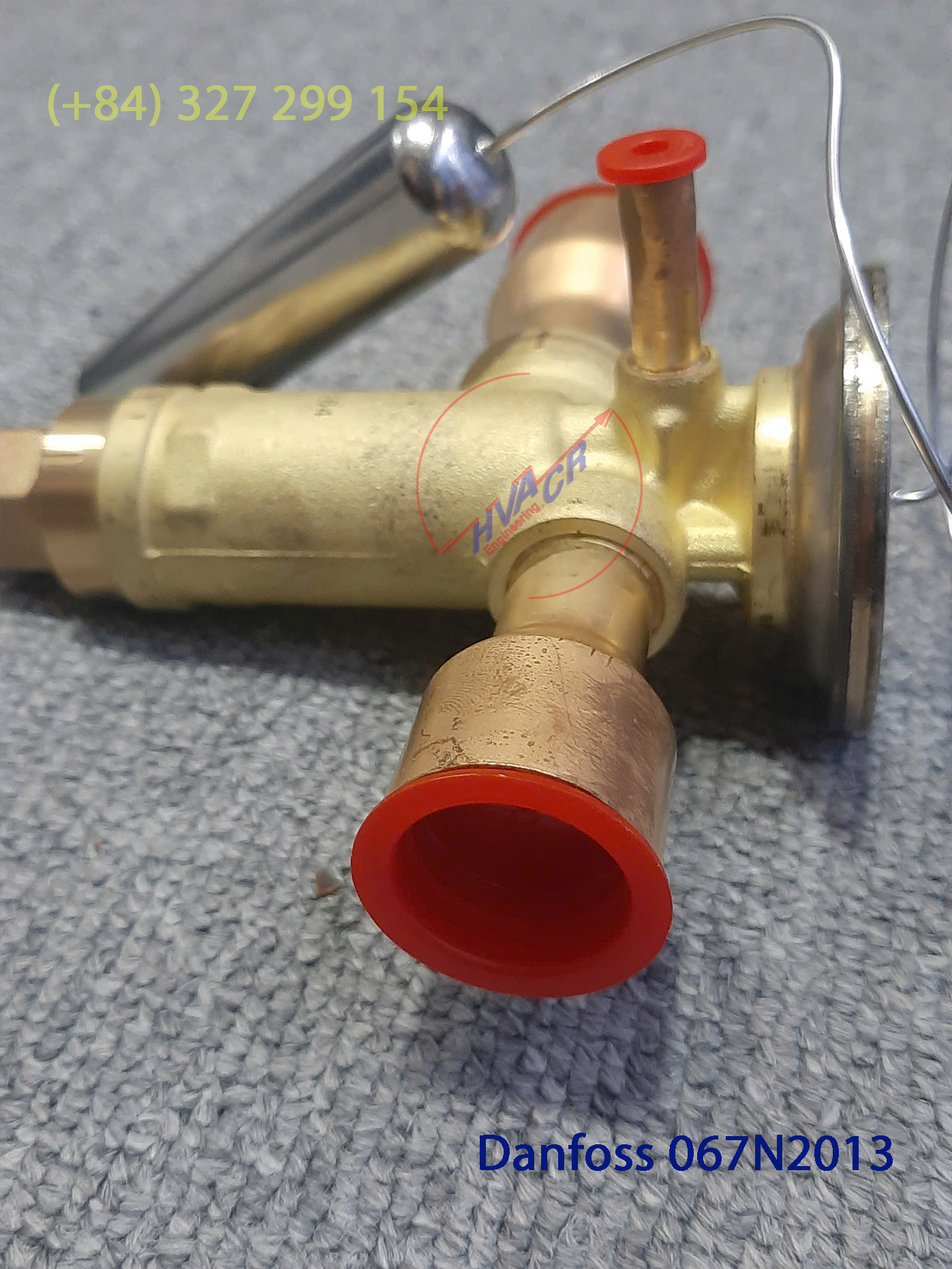

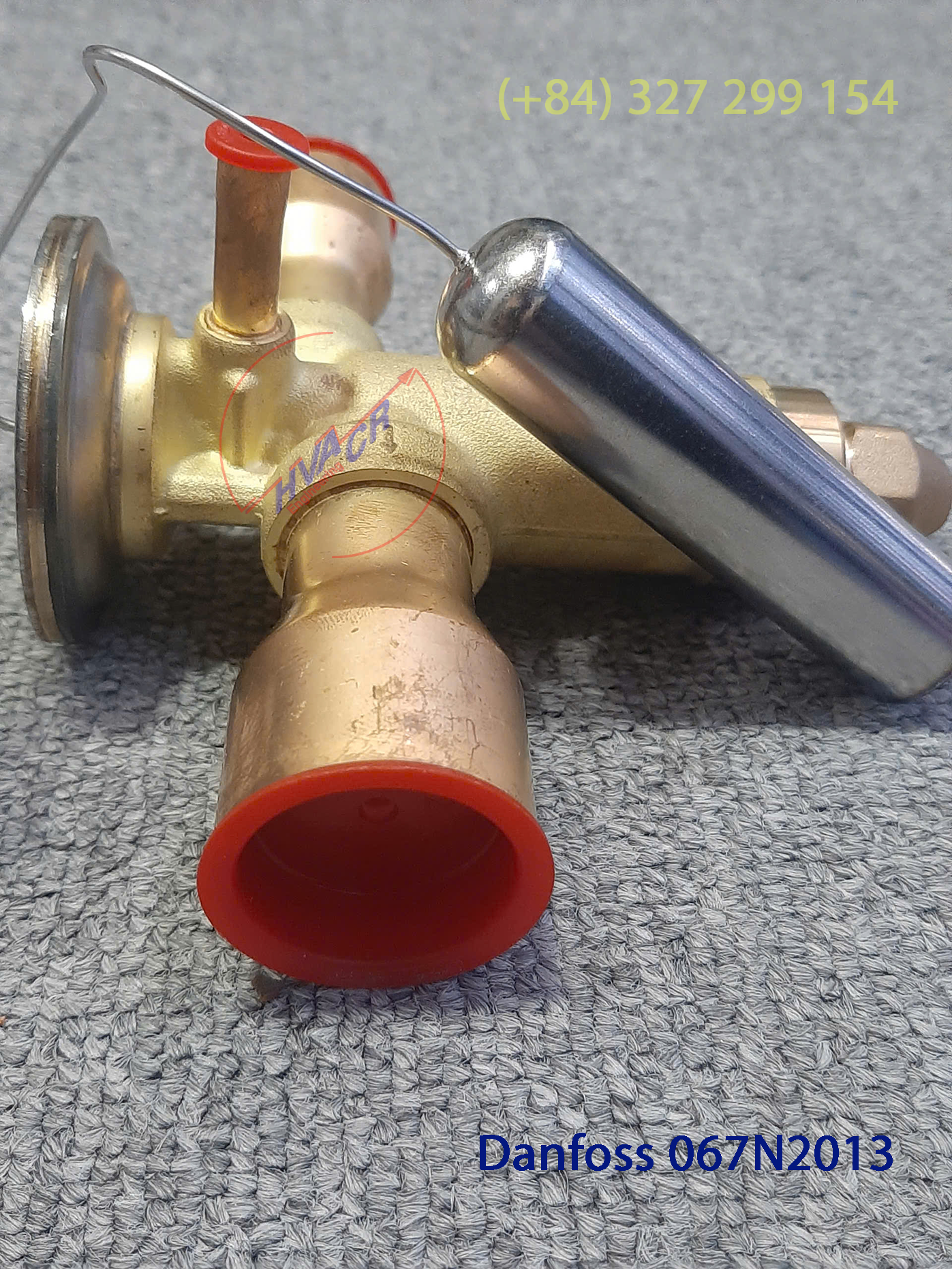

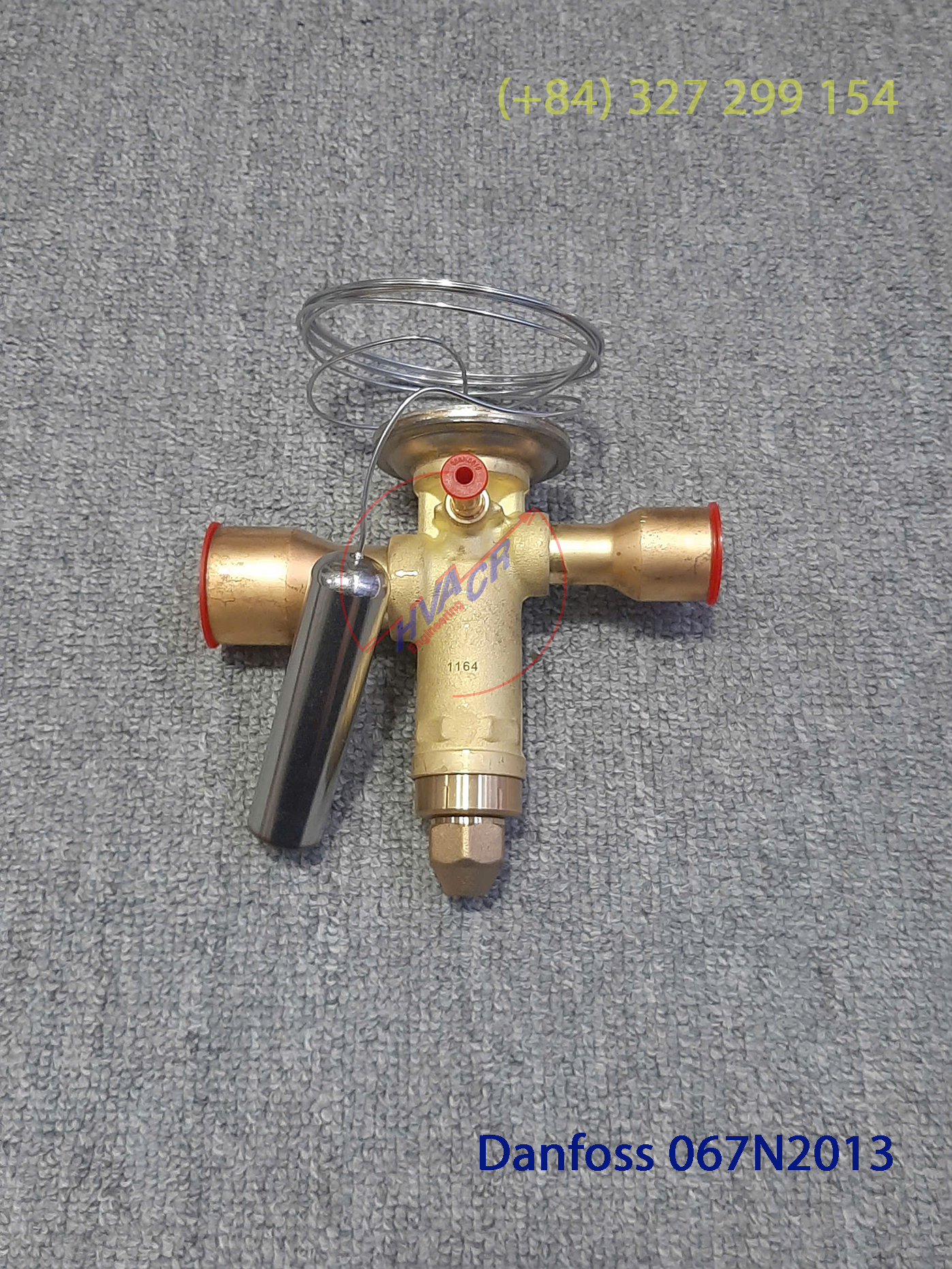

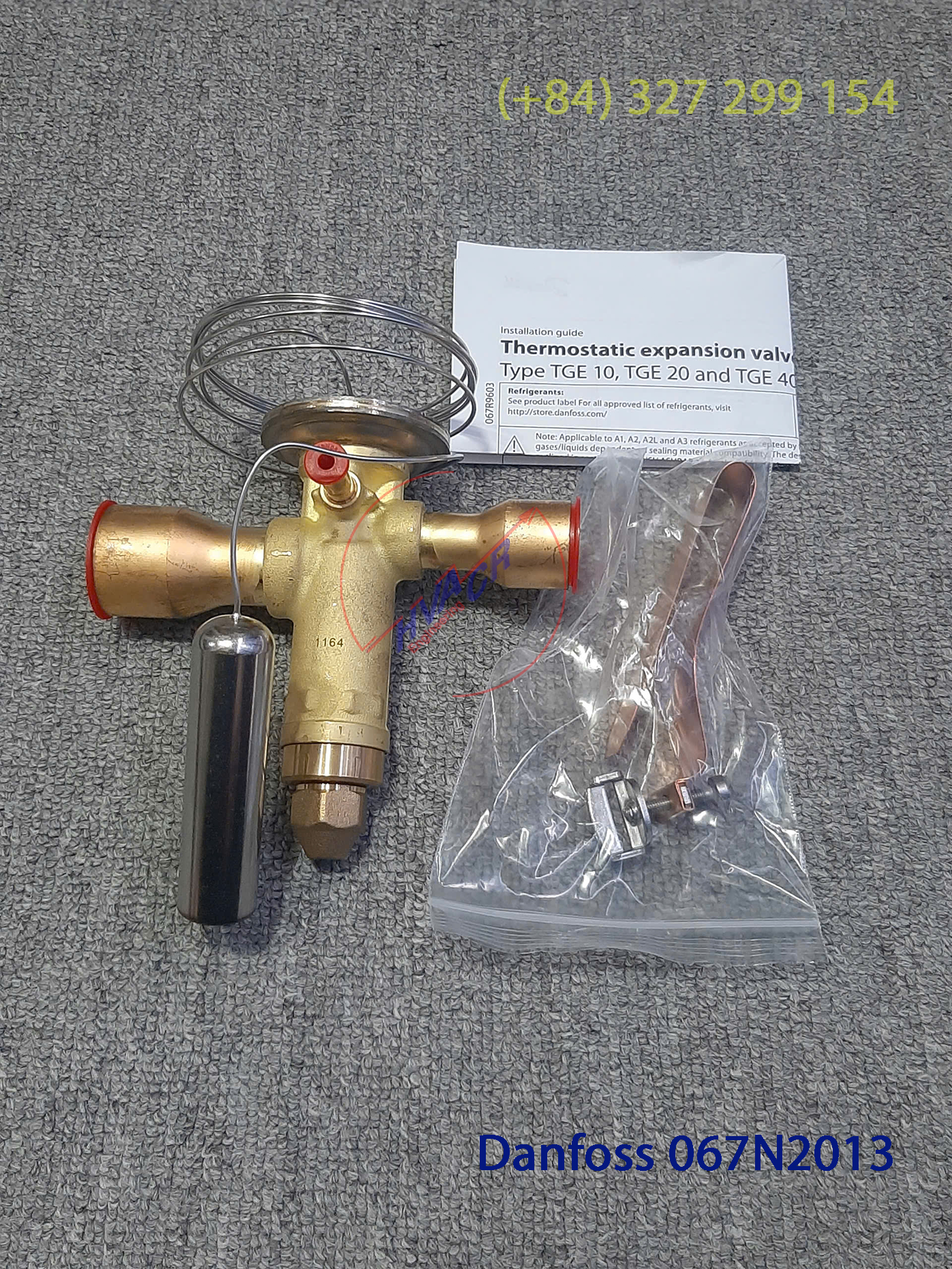

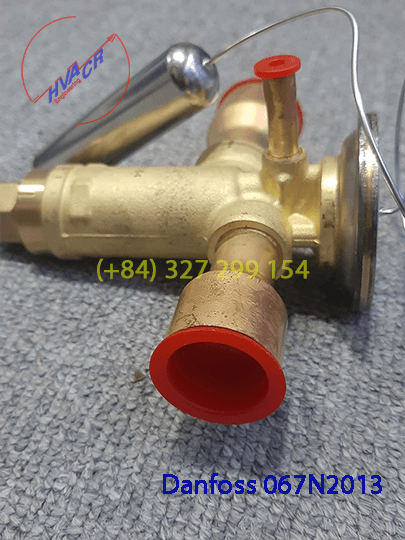

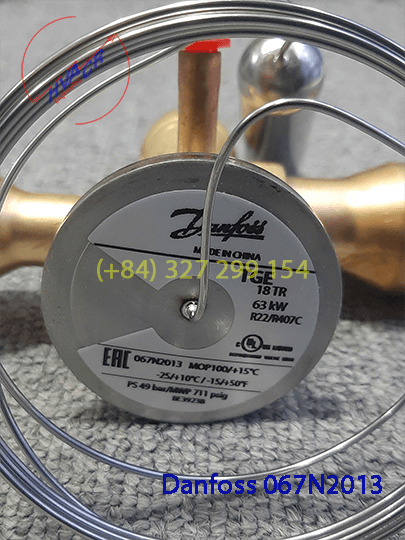

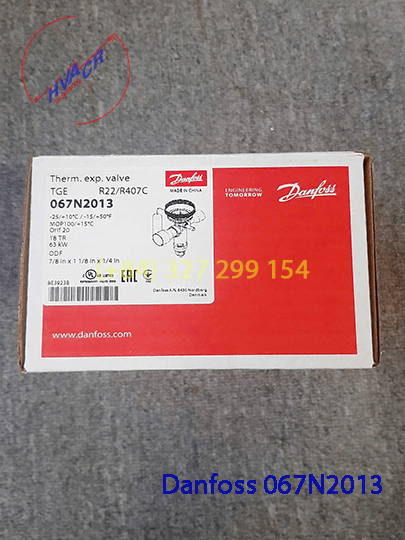

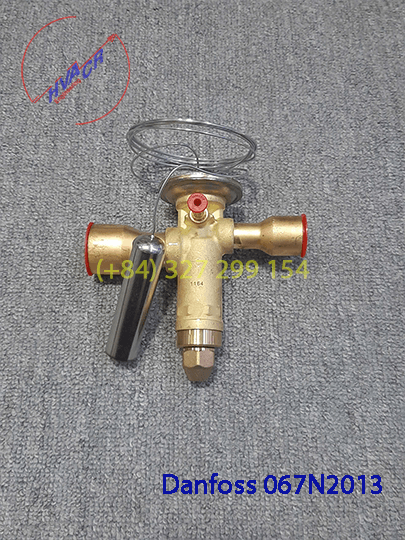

Order Thermostatic expansion valve Danfoss 067N2013
Telephone: (+84) 327.299.154
Wechat:
WhatsApp:
Line:
Fanpage Facebook: Kỹ thuật HVACR Việt Nam
| Brand | Danfoss |
| Type | TGE |
| Inlet Size | 7/8 inch (22.22 mm) |
| Outlet Size | 1 1/8 inch (28.58 mm) |
| Body Material | Brass |
| Capillary tube length | 59 inch (1500 mm) |
| Orifice capacities [kW] | 63 kW |
| Orifice capacities [TR] | 18 TR |
| Orifice Size | 20 |
| Temperature range [˚C] | -25˚C to 10˚C |
| Temperature range [˚F] | -15˚F to 50˚F |
| Weight [Kg] | 0.65 Kg |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| Country of Origin | Made in China |
| Refrigerants | R22; R407C |
Product Video
Introducing TGE, a specialized series of thermostatic expansion valves meticulously engineered for a spectrum of refrigerants. From R410A to R290, TGE ensures optimal performance across various capacities, spanning from 3.5 to 52 TR / 12 to 182 kW for R410A. Its balance port design, bi-flow capability, and low hysteresis guarantee efficient expansion in both directions, while laser-welded stainless steel components ensure durability. With mechanical connection options and optional features like MOP (Max. Operating Pressure), TGE delivers precision and reliability for diverse heat pump applications. UL certification underscores its quality and safety standards.
