Order Dixell XR06CX-5N0C1 Temperature Controller
Telephone/ Điện thoại: (+84) 327.299.154
Wechat:
WhatsApp:
Line:
Fanpage Facebook: Kỹ thuật HVACR Việt Nam
| Set Point | -5.0 |
| Differential | 2.0°C/4°F |
| Minimum Set Point | -55°C/ -55°F |
| Maximum Set Point | 99 °C / 99°F |
| Anti-short cycle delay | 1 |
| Comp. ON time faulty probe. Cy= 0 comp. always OFF | 15 |
| Comp. OFF time faulty probe. Cn= 0 comp. always active | 30 |
| Default display: P1= thermostat probe; P2= evaporator probe; SP= Set point | P1 |
| Display delay | 0 |
| Defrost type: EL= electrical heater, compressor OFF; in= hot gas, compressor ON | EL |
| Defrost termination temp. | 8.0 °C/ 46 °F |
| Interval between def. cycles | 6 |
| Fans delay after defrost | 10 |
| Fans stop temperature | 2.0 °C/ 36 °F |
| Min temperature alarm | -55 °C/ -55 °F |
| Max temperature alarm | 99 °C/ 99 °F |
Product Description:

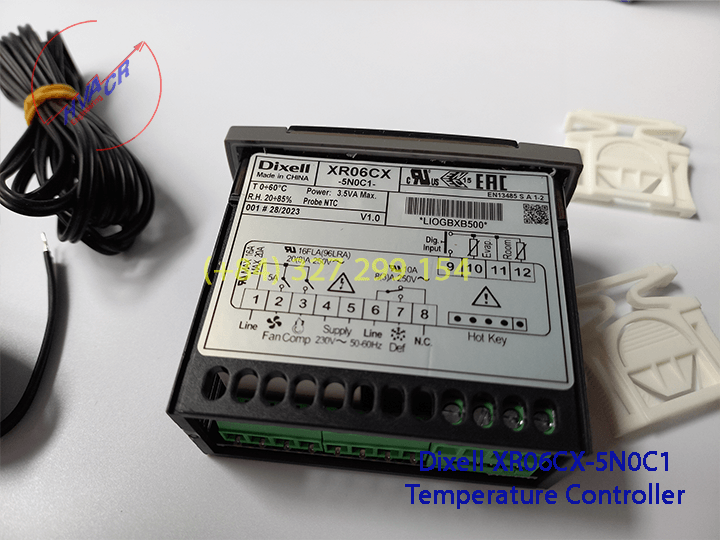

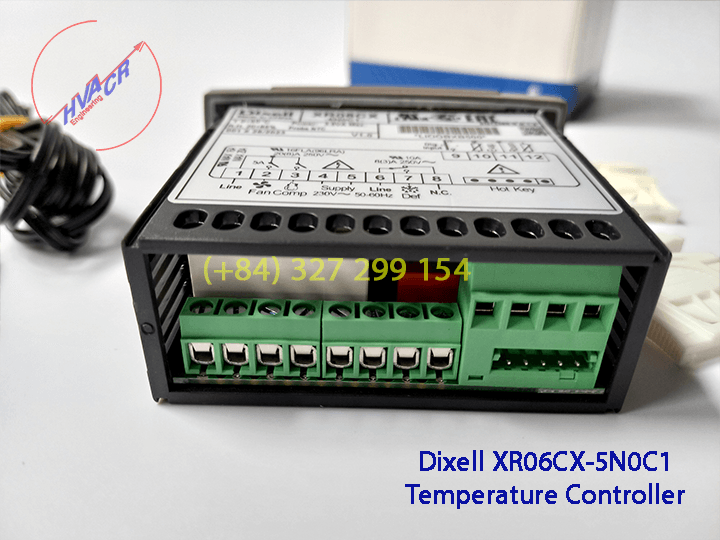

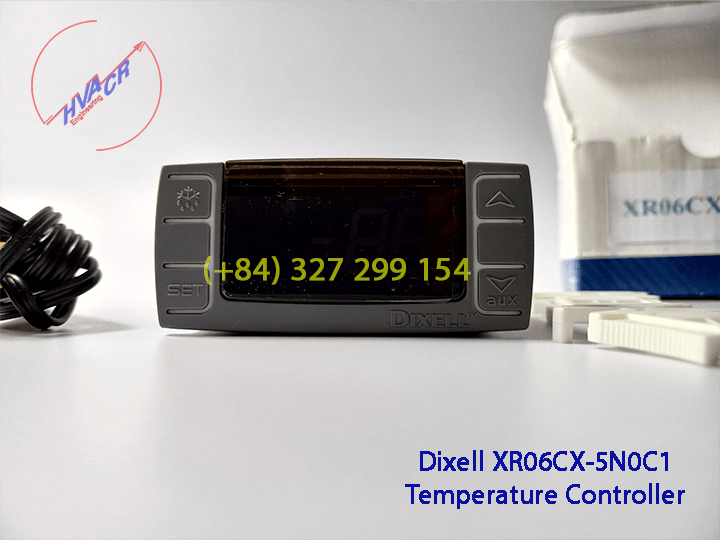

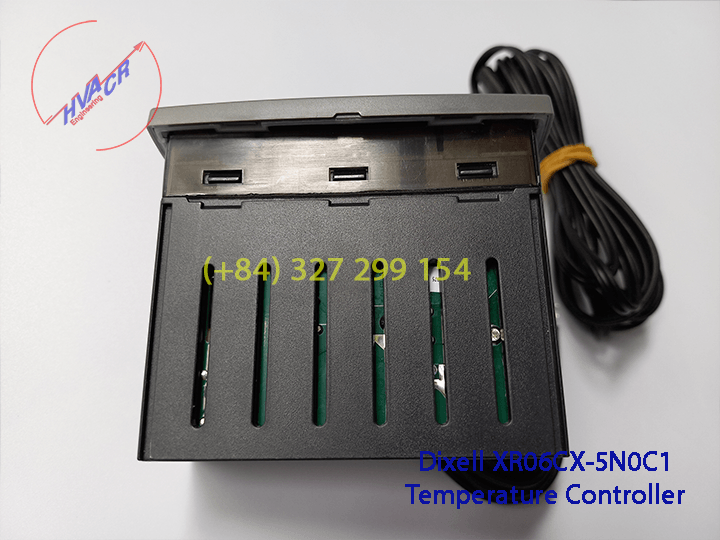

The XR06CX, format 32 x 74 x 60 mm, is microprocessor based controller, suitable for applications on medium or low temperature ventilated refrigerating units. It has three relay outputs to control compressor, fan, and defrost which can be either electrical or reverse cycle (hot gas). The device is also provided with 2 NTC probe inputs, the first one for temperature control and the second one to be located onto the evaporator, to control the defrost termination temperature and to managed the fan and it’s provided with a configurable digital input. With the HOTKEY it’s possible to program the instrument in a quick and easy way.
The Dixell XR06CX-5N0C1 is a microprocessor-based digital thermostat controller designed for use in refrigerating units, particularly in medium or low temperature ventilated refrigerating units. It is a versatile controller that can control compressor, fan, and defrost functions, making it suitable for a wide range of applications.
Applications:
Infomation to order the product/Thông tin liên hệ mua sản phẩm:
HVACR VIET NAM ENGINEERING CO.,LTD/ CÔNG TY TNHH KỸ THUẬT HVACR VIỆT NAM
Address: 331/70/45A Phan Huy Ich Street, ward 14, Go Vap District, HCM City, Vietnam
Telephone/ Điện thoại: (+84) 327.299.154
