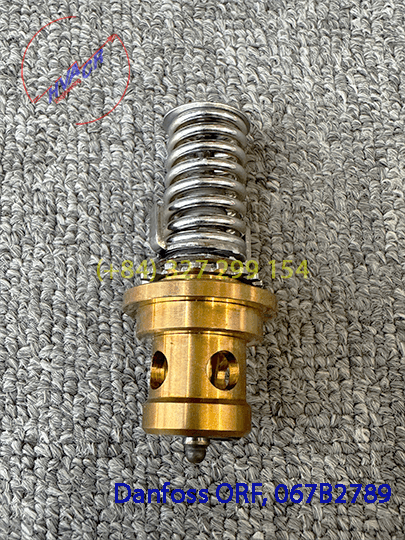

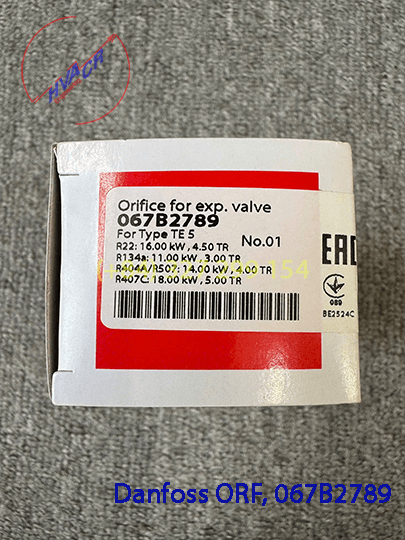

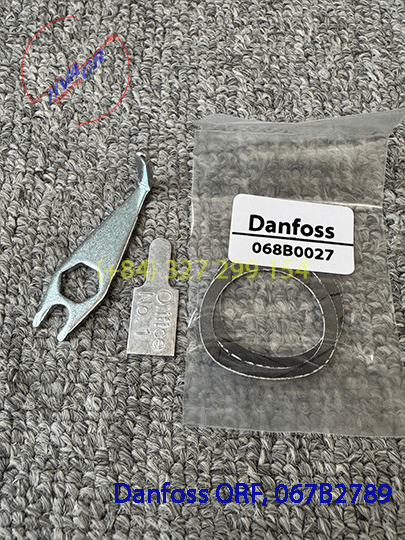

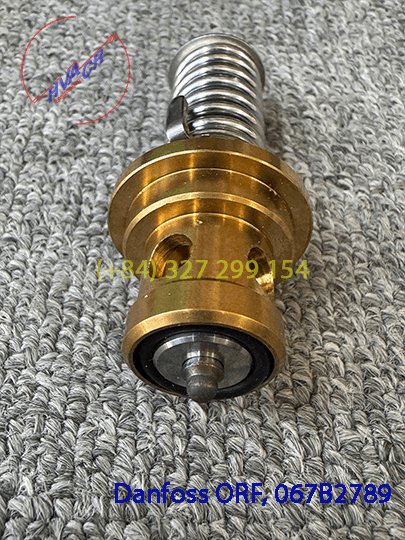

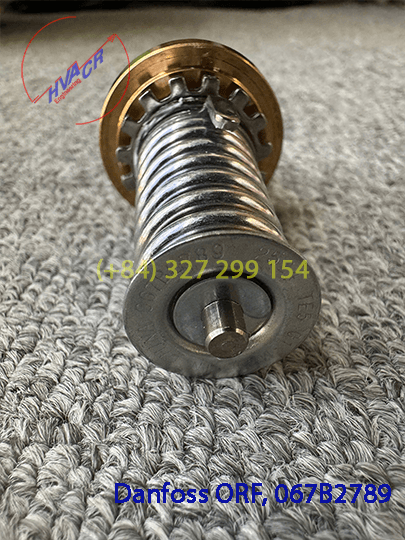

Order Danfoss ORF, 067B2789 Orifice for Expansion Valve
Telephone: (+84) 327.299.154
Wechat:
WhatsApp:
Line:
Fanpage Facebook: Kỹ thuật HVACR Việt Nam
| Brand | Danfoss |
| Type | ORF |
| Orifice Size | 1 |
| Rated cap. R134a, Range N | 3 TR (11 kW) |
| Rated cap. R22, Range B | 3.39 TR (11.9 kW) |
| Rated cap. R22, Range N | 4.5 TR (16 kW) |
| Rated cap. R404A, Range B | 2.2 TR (7.73 kW) |
| Rated cap. R404A, Range N | 4 TR (14 kW) |
| Rated cap. R407A, Range N | 5 TR (18 kW) |
| Rated cap. R407C, Range N | 5 TR (18 kW) |
| Rated cap. R407F, Range N | 5 TR (18 kW) |
| Rated cap. R507, Range B | 2.2 TR (7.73 kW) |
| Rated cap. R507, Range N | 4 TR (14 kW) |
| Rated cap.R1234yf, Range N | 2.5 TR (9 kW) |
| Used for product | TE 5 |
| Refrigerants | R1234yf; R134a; R22; R404A/R507A; R407A; R407C; R407F; R448A; R449A; R452A; R513A |
| Country of Origin | Made in China |
Product Video
Product Image
The TE 5 - TE 55 series expansion valve regulates the injection of refrigerant into evaporators. It controls the refrigerant flow based on the superheat. The exchangeable power element is produced with the well known Danfoss laser welding technology for extended lifetime capability. The TE 5 - TE 55 series is available with a wide range of orifices which will cover a wide range of applications.
Applications:
• Air conditioning system
• Chiller
• Cold room
• Freezer
• Other refrigeration systems
Features:
• Wide operating range: -40 to 10 °C / -40 to 50 °F & -60 to -25 °C / -75 to -15 °F
• Refrigerants: R407F, R407A, R448A, R449A, R452A,R404A, R507, R22, R513A, R134a and R407C.
• Interchangeable orifice assembly:
+ Easy storage
+ Easy capacity matching
+ Better service
• Laser welded stainless steel power element, capillary tube and bulb.
• Wide capacity range, rated capacity from:
+ R448A/R449A : 9 – 225 kW / 2.5 – 64 TR
+ R407F : 11 – 250 kW / 3 – 71 TR
+ R404A/R507 : 7 – 183 kW / 2 – 52 TR
• MOP function is available.
• Superior charge performance.
• PS / MWP (maximum working pressure): 28 bar / 400 psig.
• Minimized capacity gap and overlap between orifices.
• TE 55 has balanced port design.
• Patented bulb strap design.
